The Champion series is Böckmann's robust anodized aluminum class. Created for horses up to either 1.75m/17 hands at the withers, or up to 1.85m/18hands, the Champion models offer standard features like stall wall padding, and chests bar foam covers. Well protected by the anodization process, the Champion models are cool, sleek and sporty with all the standard safety features for horse and rider. The walls are in standard silver colour. The fibreglass portions of the trailers (roof and bow in Champion R) are also in a standard silver colour. Other fibreglass colours are available in RAL colours of matte red, yellow or white; or metallic colours of red, navy, green,and black. Other RAL colours may be ordered, at a surcharge.

Chassis, Body, Interior
Chassis:

Built on a hot-dipped galvanized steel chassis, the Champion rides on the Comfortable Suspension Chassis System (CFF- Plus)- an independent torsion suspension with added shocks for a smooth ride for the horse. An automatic jockey wheel mounted on an integrated lockable 2" coupler allows the rider to easily raise or lower the chassis frame for hitching purposes and moving the trailer by hand around the yard.

Body:

Anodized aluminum web profile panel side walls- 1500 mm high - always a silver finish-topped with a metallic silver roof. Different roof colours are available (accessory). A flat front profile on the C model, or a rounded fibreglass front on the R model, which houses the saddle chest. Single plastic fenders, two pop-out tinted windows, decoration stripes on the side wall, with a decor by Jan Künster, completes the look. All trailers for North America come with a mounted full spare wheel.

Interior:

The inner stall area is a bright white in both wall and roof colour. The loading ramp is covered with rubber integrated safety treads and side stops - preventing slipping in inclement weather. The Multi-Safe Stall system allows you to adjust height of the stall bars and the length of the stall. In an emergency the chest bars can be released from outside the trailer. Interior lighting is found in both the stall area and tack storage. Black lateral kick plates and stall pads complete the inside stall walls. The Saddle Chest options are shown in Photos 2 and 13.

Champion Uno

A trailer for a single horse, the Champion Uno offers both a simple horse box model or one with a saddle storage (see Photo 2 tack compartment).

The trailer front is flat on the Champion Uno C.

Step up conversion and attached folding mounting step is an option!

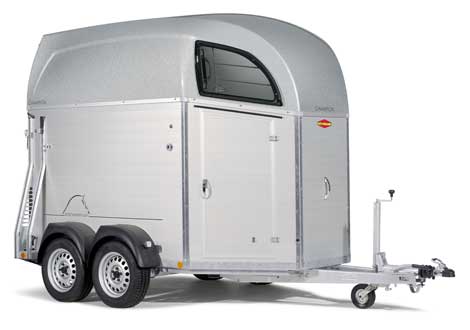

Champion C

Offering a simple horse box, the Champion C does not come with a saddle storage.

Step up conversion and attached folding mounting step is an option!

See Photos 3 and 4.

Champion R

A sporty horse trailer for two horses with saddle storage, the Champion R does it with style!

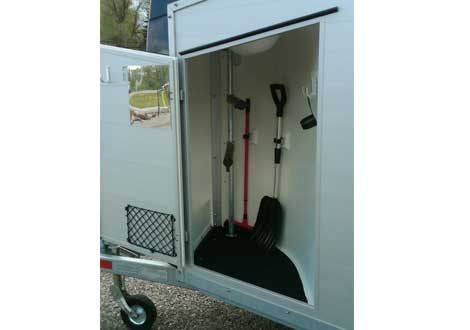

The Saddle Chest option offers 2 telescopic saddle racks, hooks, 1 shelf, broom, shovel and door net, as seen in Photo 13.

Step up conversion and attached folding mounting step is an option!

Big Champion R

A sporty horse trailer for two horses with saddle storage, the Big Champion R accommodates horses up to 18 hands.

Step up conversion and attached folding mounting step is an option!

Measurement Data

Download Measurement DataGet Free Adobe Reader

Type GVWR Height Width Length Interior Height Interior Width Interior Length Head Space Payload Loaded Tongue Weight
Big Champion R 5280 lbs 9’ 1” 7’ 7” 15’ 11” 7’ 7” 5’ 9” 11’ 2” 54” 3082 lbs 211 lbs
2400 kg 2760 mm 2300 mm 4850 mm 2300 mm 1750 mm 3415 mm 1370 mm 1401 kg 96 kg
Champion C 5280 lbs 8’ 11” 7’ 3” 14’ 9” 7’ 7” 5’ 5” 10’ 2” 43” 3304 lbs 211 lbs
2400 kg 2730 mm 2200 mm 4500 mm 2300 mm 1650 mm 3100 mm 1080 mm 1502 kg 96 kg
Champion R 5280 lbs 8’ 11” 7’ 3” 14’ 9” 7’ 7” 5’ 5” 10’ 9” 48” 3293 lbs 211 lbs
2400 kg 2730 mm 2200 mm 4500 mm 2300 mm 1650 mm 3280 mm 1225 mm 1497 kg 96 kg
Champion Uno 3520 lbs 9’ 1” 6’ 14’ 9” 7’ 7” 4’ 3” 10’ 2” 43” 1848 lbs 141 lbs
1600 kg 2760 mm 1830 mm 4490 mm 2300 mm 1300 mm 3100 mm 1080 mm 840 kg 64 kg
Standard Features

All Böckmann Horse Trailers for North America include:

• Adjustable chest/butt bars
• All wheel mechanical brakes
• All-wheel CFF-Plus shocks (except where WCF is indicated)
• Automatic jockey wheel
• Black kick plates
• Black plastic fenders
• Clear PVC on tubular steel stall divider
• Galvanized steel chassis
• Hay net hooks
• Independent torsion suspension
• Interior lighting
• Multi-Safe System: adjustable bars for stall length and bar height
• Ramps covered with Böckmann's safety treads & side stops
• Rubber stall mat glued and sealed to floor
• Spare wheel & cover

Trailers are rear ramp-loads, unless otherwise specified.

Saddle Chest Kits include: broom, shovel, net, & mirror on door.
